Ice on power lines is a weighty subject

  • Posted: 02.21.2022

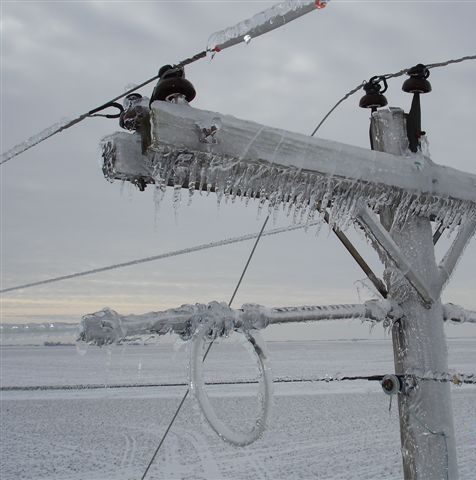

ice coated power lines

In March, we know that spring is just around the corner. But we also know that March storms can produce ice instead of (or in addition to) snow. And that ice can be a dangerous force.

The added weight of ice on poles can quickly lead to broken power poles and other pole equipment. Ice can also make falling tree branches 30 times heavier and much more likely to break power lines.

For example, on a 300-foot span of 1-inch-thick power lines:

  • 1/2 inch of ice adds 281 pounds of weight
  • 1 inch of ice adds 749 pounds of weight
  • 2 inches of ice adds 2,248 pounds of weight

In addition, melting ice can cause power outages. If ice on the bottom (neutral) line melts before the lines above, it can cause the lines to touch, leading to an outage.

Other ice facts

  • Damage can begin when ice exceeds 1/4 of an inch
  • 1/2 inch of ice can cause a line to sag up to 12 inches
  • Pressure can also be caused by a broken tree limb
  • Both ice and melting ice can cause power outages
  • Ice can form around power lines in a teardrop shape. This shape acts as a wing, causing the line to gain lift and rise with high winds. The ice can also break off, causing unsafe conditions on the ground.

Source: Safeelectricity.org
